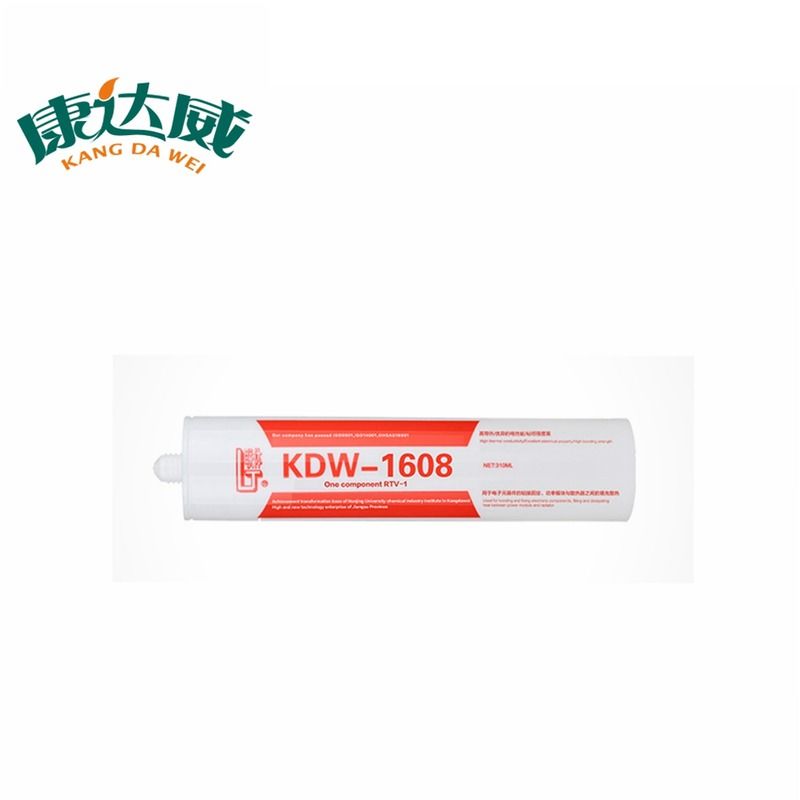

Moisture Proof Electronics Silicone Sealant Glue Good Adhesion And Sealing

Product Details

Place of Origin: Jiangsu, China

Brand Name: Lianti

Certification: ISO9001

Model Number: KDW-1608

Payment & Shipping Terms

Minimum Order Quantity: 1.0 Pieces

Packaging Details: Plastic pipe, 330ml, 25/package; Also could be customized

Get Best Price
Highlight:

Moisture Proof Electronics Silicone Sealant

,

Moisture Proof Silicone Sealant Glue

,

Good Adhesion Electronics Silicone Sealant

Place Of Origin:
Jiangsu, China
Main Raw Material:
Silicone
Usage:
Power Supply
Brand Name:
Lianti
Model Number:
KDW-1608
Type:
Liquid Glue
Application:
Electronics
Appearance:
Paste
Certificate:
ISO9001
Packing:
330ml
Quality:
Guarantee
Feature:
Bonding Strength
Color:
White
Place Of Origin:
Jiangsu, China
Main Raw Material:
Silicone
Usage:
Power Supply
Brand Name:
Lianti
Model Number:
KDW-1608
Type:
Liquid Glue
Application:
Electronics
Appearance:
Paste
Certificate:
ISO9001
Packing:
330ml
Quality:
Guarantee
Feature:
Bonding Strength
Color:
White
Moisture Proof Electronics Silicone Sealant Glue Good Adhesion And Sealing

Bond strength liquid kangdawei silicone gel for electronics one-component neutral thermal conductive rubber

About us



kangdawei liquid silicone gel for electronics one-component neutral thermal conductive rubber

kangdawei liquid silicone gel for electronics one-component neutral thermal conductive rubber

kangdawei liquid silicone gel for electronics one-component neutral thermal conductive rubber

About products

kangdawei liquid silicone gel for electronics one-component neutral thermal conductive rubber

kangdawei liquid silicone gel for electronics one-component neutral thermal conductive rubber







Production Features

KDW-1608 which is cured from the outside to the inside by absorbing moisture in the air. It could be used in all kinds of electronic products of thermal conductivity and adhesion. It has excellent electrical insulation property, dampproof, anticorona, the function of cushion, and good high and low temperature resistance performance, temperature resistance range is -60~+260℃. The product is non-toxic, which has excellent aging resistance performance and long service life. It could be long-term used in indoor and outdoor products of adhesion, sealing, waterproofing and insulation protection.

Technical Data



Test item
KDW-1608


Uncured
Color
White
Viscosity
Paste
Density(g/cm3)
2.1
Tack free time(min)
5~30








Cured


Mechanical property
Tensile strength(Mpa)
≥ 2.0
Tensile elongation(%)
≥ 150
Shore hardness(A)
≥ 50
Shear strength(Mpa)
≥ 1.5
Peel strength(KN/m)
≥ 4.0


Electrical property
Dielectric strength(KV/mm)
≥ 16
Dielectric constant(105HZ)
≤ 2.5
Dielectric loss angle tangent(105HZ)
≤ 5 X 10-3
Volume resistivity(Ω. Cm )
≥ 1 X 1014
Other
property
Maximum service temperature(℃ )
260
Linear contraction (%)
1.0
Ps: All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.
Operation

1. Clean the surface: clean the surface of adherend or coated object, remove rust, dirt and greasy dirt, etc. (dirt and greasy dirt would affect adhesion performance)
2. Sizing: use knife to cut the head of plastic pipe, put on long nose, extrude the adhesive on clean surface, and fix the adherend.
3. Curing: put the adhesive units in the air, whether it is completely cured is depending on the thickness. (2mm thickness, 25℃, 50% humidity, could be completely cured after 24 hours )
4. Notes: Seal and store the remaining sealant immediately after use. Remove the crust on the head when using again, which would not affect normal working.
