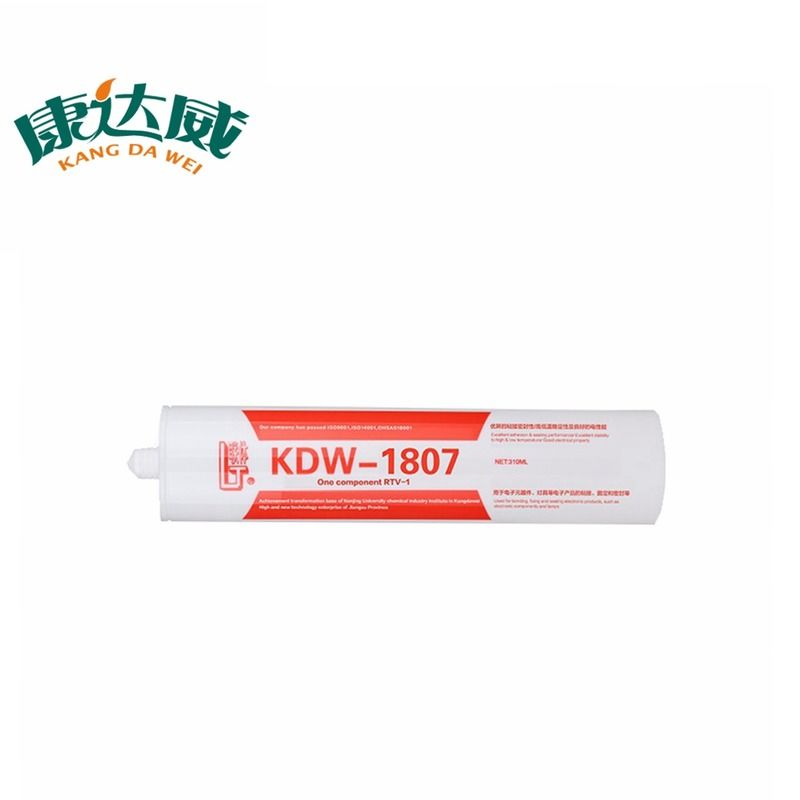

Dampproof Thermal Conductive Silicone Adhesive Conductive Rtv Silicone Customized

Product Details

Place of Origin: Jiangsu, China

Brand Name: Lianti

Certification: ISO9001

Model Number: KDW-1807

Payment & Shipping Terms

Minimum Order Quantity: 1000.0 Pieces

Packaging Details: 100ml/sausage, 100sausage/package; 300ml/pipe, 25pipe/package; 330ml/pipe, 25pipe/package; also could be customized

Supply Ability: 10 Ton/Tons per Month

Get Best Price
Highlight:

Dampproof Thermal Conductive Silicone Adhesive

,

Dampproof Conductive Rtv Silicone

,

Conductive Rtv Silicone Customized

CAS No.:
63148-60-7
Other Names:
Silicone Sealant
MF:
Mixture
EINECS No.:
Unspecified
Place Of Origin:
Jiangsu, China
Classification:
Other Adhesives
Main Raw Material:
Silicone
Usage:
Packing, Eletronics
Brand Name:
Lianti
Model Number:
KDW-1807
Type:
Neutral, Neutral
Color:
White
Application:
Electronics
Appearance:
Paste
Certificate:
ISO9001
Packing:
100ml/300ml/330ml, Etc
Quality:
Guarantee
Shelf Life:
6 Months
Feature:
Bonding Strength
Viscosity:
Excellent Viscosity
CAS No.:
63148-60-7
Other Names:
Silicone Sealant
MF:
Mixture
EINECS No.:
Unspecified
Place Of Origin:
Jiangsu, China
Classification:
Other Adhesives
Main Raw Material:
Silicone
Usage:
Packing, Eletronics
Brand Name:
Lianti
Model Number:
KDW-1807
Type:
Neutral, Neutral
Color:
White
Application:
Electronics
Appearance:
Paste
Certificate:
ISO9001
Packing:
100ml/300ml/330ml, Etc
Quality:
Guarantee
Shelf Life:
6 Months
Feature:
Bonding Strength
Viscosity:
Excellent Viscosity
Dampproof Thermal Conductive Silicone Adhesive Conductive Rtv Silicone Customized

Bonding Strength Quick Cure Silicone Heat Resistant Adhesive For Electronics

Product Show
Dampproof Thermal Conductive Silicone Adhesive Conductive Rtv Silicone Customized 0
Product Details

Performance

KDW-1807 is one-component condensed sealant, which is cured from the outside to the inside by absorbing moisture in the air, so the curing time could be reduced by improving environment temperature and humidity. It could be used in all kinds of electronic component of adhesion and sealing. It has excellent electrical insulation property, dampproof, anticorona, the function of cushion, and good high and low temperature resistance performance. It could be long-term used in indoor and outdoor products of adhesion, sealing, waterproofing and insulation protection.

Application

1. Automobile and other lamps
2. Power supply and control module
3. Electronic components of fixing, instruments of adhesion and sealing

Feature

1. One-component dealcoholization condensation silicone sealant
2. Paste, easy to process, strong maneuverability
3. Low shrinkage rate, no corrosion, no stress
4. Excellent high temperature electrical insulation and stability
5. Excellent thermal conductivity

Test item
KDW-1807


Uncured
Color
White/Black/Gray
Viscosity
Paste
Density(g/cm3)
1.45±0.05
Tack free time(min)
5~30







Cured



Mechanical property
Tensile strength(Mpa)
≥ 2.0
Tensile elongation(%)
≥ 200
Shore hardness(A)
≥ 35
Shear strength(Mpa)
≥ 2.0
Peel strength(KN/m)
≥ 5.0


Electrical
property
Dielectric strength(KV/mm)
15
Dielectric constant(1MHz)
2.5~3.5
Dielectric loss angle tangent(105HZ)
≤ 3 X 10-2
Volume resistivity(. Cm )
≥ 1 X 1014
Ps: All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.

Packing

100ml/sausage, 100sausage/package; 300ml/pipe, 25pipe/package; 330ml/pipe, 25pipe/package;
also could be customized.

Storage and transportation

1. Avoid light and heat, keep ventilation and dry (could be transported and stored as non-dangerous goods )
2. The shelf life would be 6 months at 25℃.

Operation process

1. Clean the surface: clean the surface of adherend or coated object, remove rust, dirt and greasy dirt, etc. (dirt and greasy dirt would affect adhesion performance)
2. Sizing: use knife to cut the head of plastic pipe, put on long nose, extrude the adhesive on clean surface, and fix the adherend.
3. Curing: put the adhesive units in the air, whether it is completely cured is depending on the thickness. (2mm thickness, 25℃, 50% humidity, could be completely cured after 24 hours )
4. Notes: Seal and store the remaining sealant immediately after use. Remove the crust on the head when using again, which would not affect normal working.
